Hybrid Motor with Brake

Minebea
Hybrid Motor with Brake

Hybrid Motor with Brake

Get a Sample

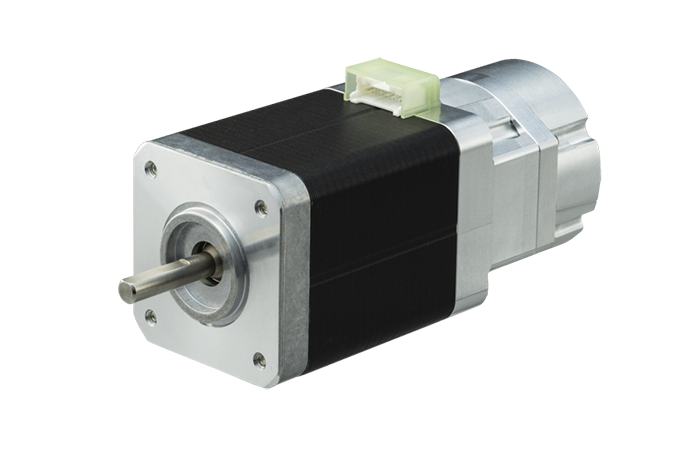

MinebeaMitsumi manufacturers a hybrid stepping motor with a power-off electromagnetic brake. Typically, motors can rotate under external force even when powered off. However, by mounting an electromagnetic brake at the rear of the motor shaft, unwanted movement on vertical axes is prevented, and the detent torque is enhanced when the motor is stationary. Additionally, the integrated design of the motor and brake helps minimize installation space requirements. The brake operates on a separate DC24V power supply, independent of the motor’s power source.
Features
  • integrated electromagnetic brake that holds the load and prevents drag when stopped under external pressure
  • Brake torque (static friction torque): 300 mN·m
  • Power ON: Brake release, Power OFF: Brake lock
Applications
  • Clinical analyzer
